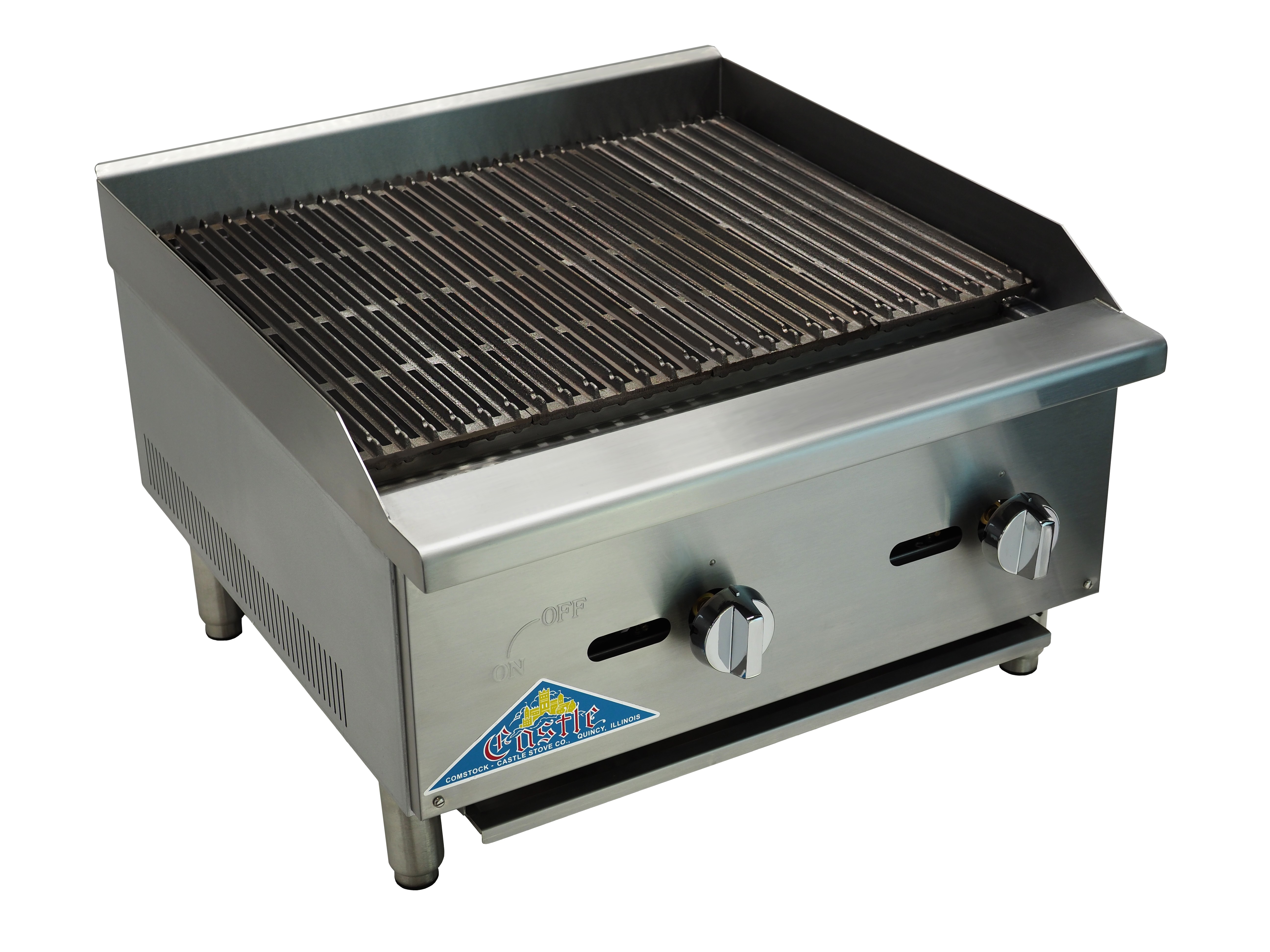

Lava Style CCELB Series



CONSTRUCTION: 16ʺ, 26ʺ, 36ʺ, 48ʺ & 60ʺ wide models available. Easy cleaning, corrosion resistant G90 galvanized finish. Double wall construction. 4ʺ bull-nose landing. 4ʺ tall adjustable legs. 3ʺ grease trough. Full width drip tray.

CONTROLS: Castle char-broilers are equipped with brass gas valves, front accessible automatic standing pilots, pressure regulators and cool to the touch control knobs.

BURNERS: Efficient stainless steel “U” shaped burners are rated at 30,000 BTU's each provide even heating across the cooking surface.

BROILER: Heavy 6ʺ wide cast iron tilt-able top grates. Heavy cast iron bottom grates to hold lava stones.

TESTING: Optimal pressure is 4ʺ WC for natural gas,10ʺ WC for propane. ETL design & sanitation certified.

Product Features:

  • Lava rock style, high BTU for fast broiling, heavy iron grates hold heat. Heavy construction for long life, Sturdy heavy legs.

Product Documents

CCELB Lava-Broiler Specs

SKU Details



Sku Images Part# Description Total B.T.U
CCELB16 Char-Broiler-Lava, countertop, gas, 16" wide x 27" deep frame, 24" x 18" deep cook surface, cast iron top grates and cast iron lava rock grates, 10 ga. stainless steel radiants, (2) manual controls, stainless steel splash guard, stainless steel front, galvanized sides, 4" stainless steel legs, 60,000 BTU, ETL, ETL-Sanitation 30,000
CCELB24 Char-Broiler-Lava, countertop, gas, 24" wide x 27" deep frame, 24" x 18" deep cook surface, cast iron top grates and cast iron lava rock grates, 10 ga. stainless steel radiants, (2) manual controls, stainless steel splash guard, stainless steel front, galvanized sides, 4" stainless steel legs, 60,000 BTU, ETL, ETL-Sanitation 60,000
CCELB36 Char-Broiler-Lava, countertop, gas, 36" wide x 27" deep frame, 36" x 18" deep cook surface, cast iron top grates & cast iron lava rock grates, stainless steel splash guards, stainless steel front, galvanized sides, 4" stainless steel legs, (3) manual controls, 90,000 BTU, NSF, cETLus, ETL 90,000
CCELB48 Char-Broiler-Lava, countertop, gas, 48" wide x 27" deep frame, 48" x 18" deep cook surface, cast iron top grates & cast iron lava rock grates, stainless steel splash guards, stainless steel front, galvanized sides, 4" stainless steel legs, (4) manual controls, 120,000 BTU, NSF, cETLus, ETL 120,000
CCELB60 Char-Broiler-Lava, countertop, gas, 60" wide x 27" deep frame, 60" x 18" deep cook surface, cast iron top grates & cast iron lava rock grates, stainless steel splash guards, stainless steel front, galvanized sides, 4" stainless steel legs, (5) manual controls, 150,000 BTU, NSF, cETLus, ETL 150,000
