Griddle and Hot Plate Parts - Budget (8,9 & 10 Series)

NOT SURE WHICH PART TO YOU NEED? Click on the parts diagram below if you are not sure of the part number. You will see a pdf version of the parts drawing. The number next to the part is the Item#. Find the corresponding Item# in the parts listed below.

SKU Details

Sku Images Part# Description
16016M Base, Cast Iron Machined Burner
16017AL Ring, Burner Cap
16015 Assy., Cast Iron "Y" Tube Burner

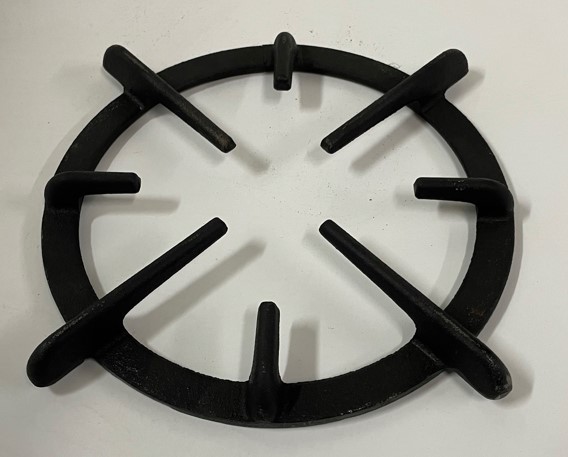

V15-10 Grate, 10" Stainless Steel Top
25001-51 Assy; Manual Gas Valve W/#51 Orifice - NG (OTB)
25001-58 Assy; Manual Gas Valve W/#58 Orifice - LP (OTB)
25001 Valve, Manual Gas (#18) Flat Up
18030 Knob, Big, On-Off, Manual - F Series - Blue
EG101 Grease Drawer, EG Series
17006N Control, Convertible Regulator - Natural
17006L Convertible Pressure Regulator - LP

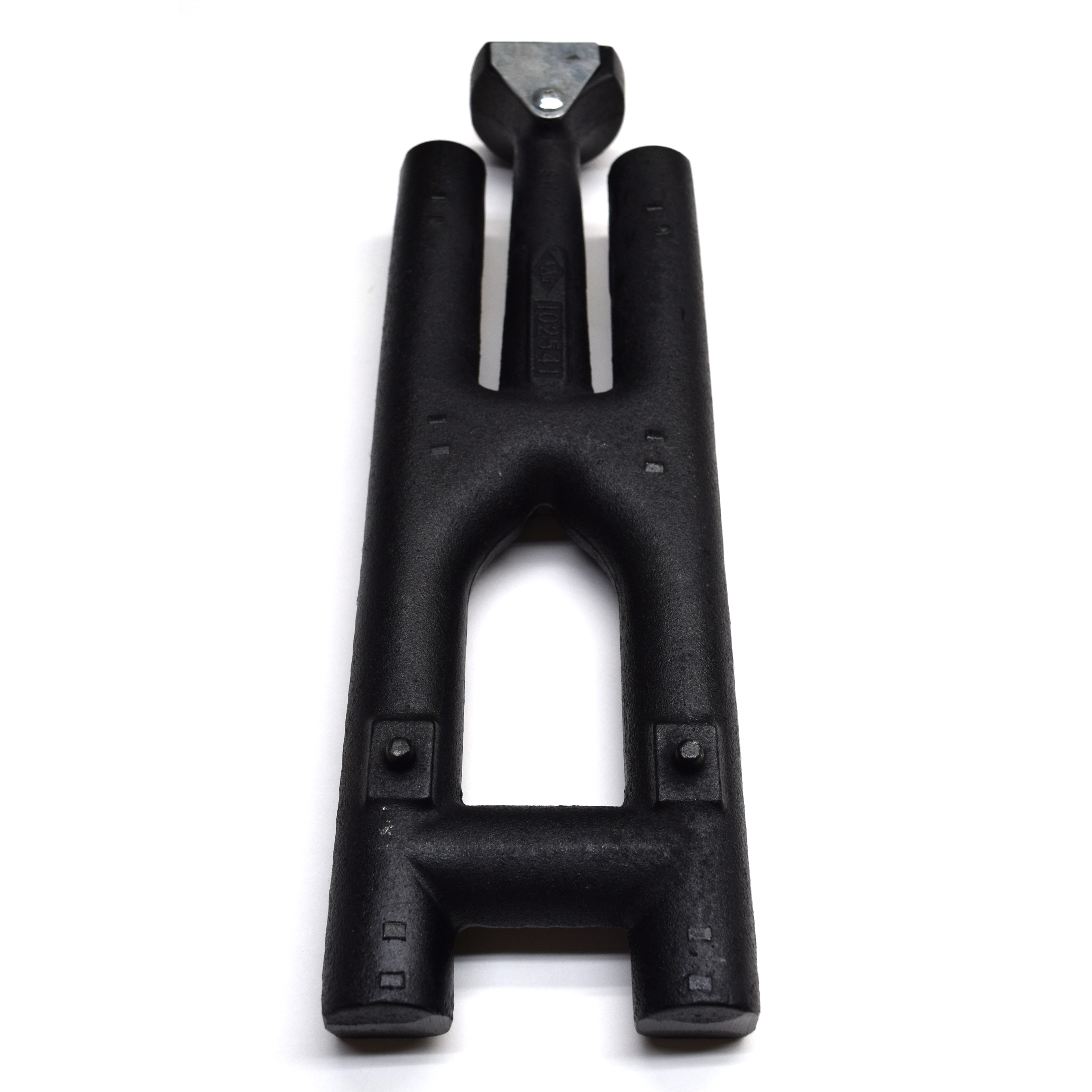

16014 Burner, Cast Iron "H" - Small
16001 Mixer, Air - Triangle (#AM340)
17033 Control, GS Thermostat (200-400 Degrees)
18008 Knob, GS Thermostat, Black (200-400)
V104-A 10 Series Grease Chute Assembly
