Ovens: Pizza and Bake Oven Parts



Click on the exploded parts drawing below if you are not sure of the part number. You will see a pdf version of the parts drawing. The numbers next to the part is the Item#. Find the corresponding Item# in the parts listed below.

SKU Details



Sku Images Part# Description Diagram Part # ADDTOCARTDETAILSANDPRICE

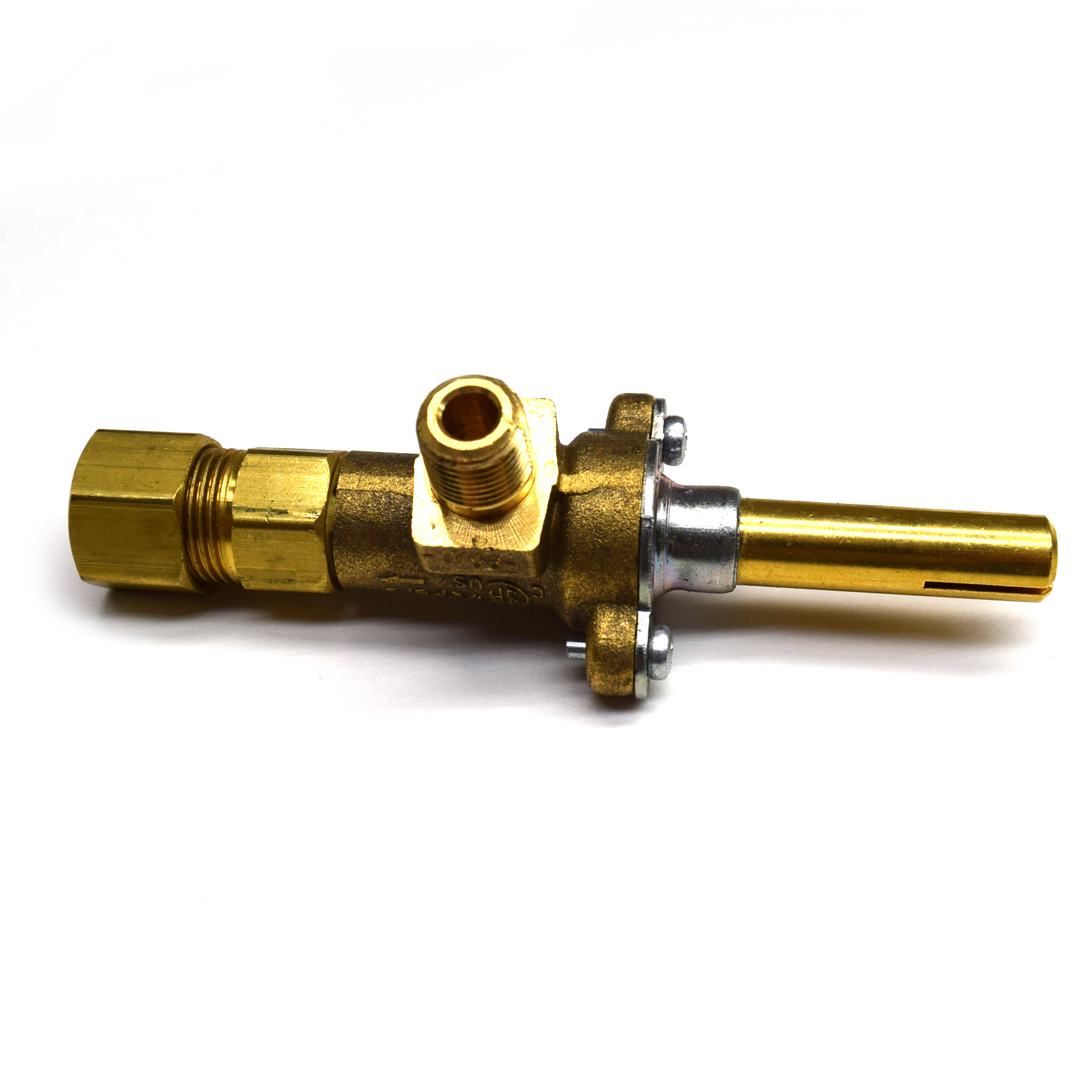

25002 Valve, Gas W/ 1/8" NPT X 3/8 CC

17002-A Control, Pilot Head - Natural

17003-A ASSY; Pilot Head Control - LP

17005 Control, Thermocouple

17031 Control, FDO Thermostat

17030 Control, FDH Thermostat (300-640 Degrees)

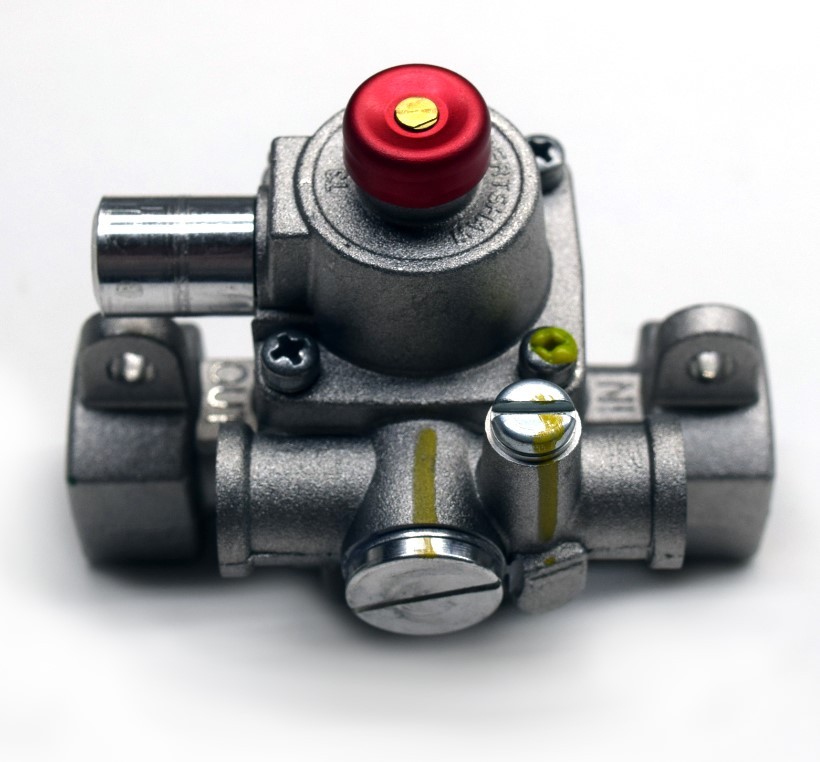

17021 Control, TS11 Oven Safety Valve

17018 Baso Safety Valve

17006N Adjustable Pressure Regulator - Natural 18

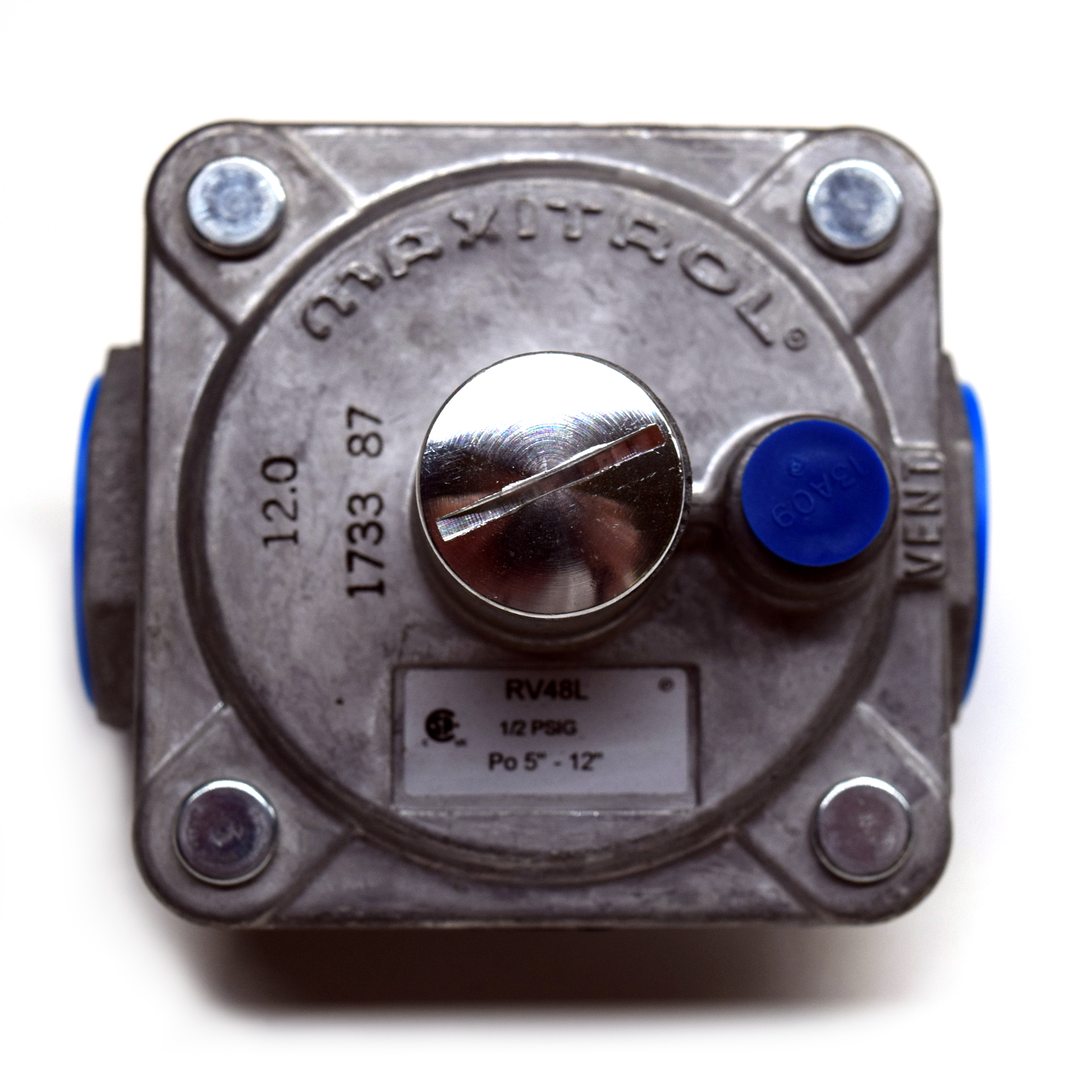

17006L Adjustable Pressure Regulator - LP 18

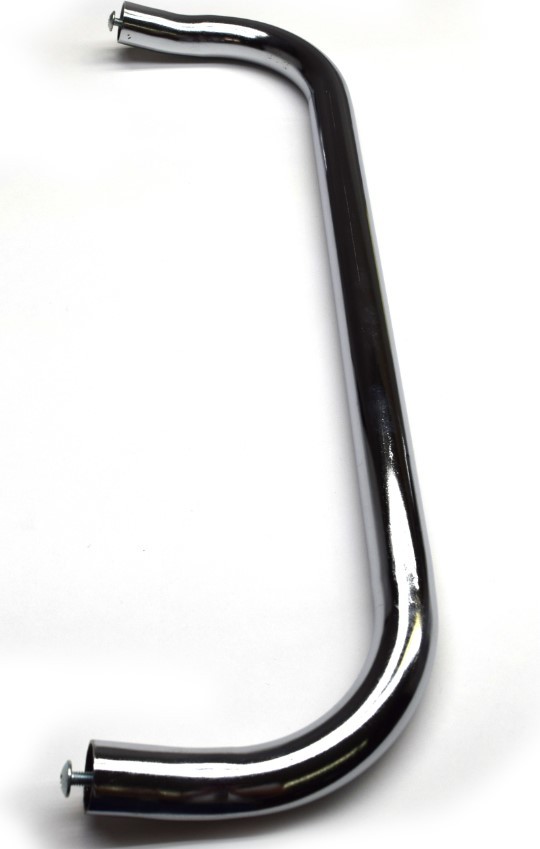

23017 Handle., F Series 31" Chrome Oven Door, S.S. Complete 17

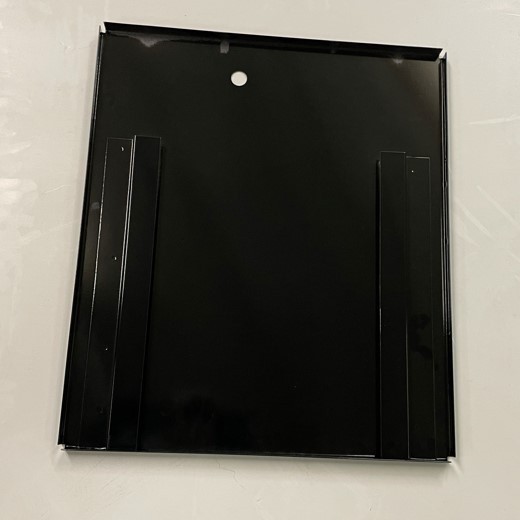

FX111-AE Assy., F Series 19" Enameled Oven Bottom 26

16013 Burner, Cast Iron "H" - Large - W/Air Mixer 15

23019 Handle., F Series 19" Chrome Oven Door, S.S. Complete 17

FZ111-AE Assy., F Series 26" Enameled Oven Bottom 26

FY111-AE Assy., F Series 31" Enameled Oven Bottom 26

18009 Knob, FDH Pizza Oven Thermostat, Black (300-650 degrees)

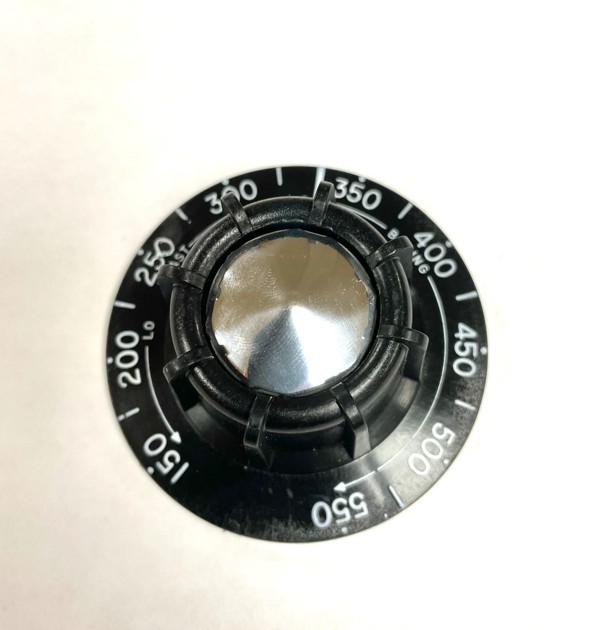

18011 Knob, FDO Bake Oven Thermostat, Black (150-500 degrees)

18030 Knob, Big, On-Off, Manual - F Series - Blue 33

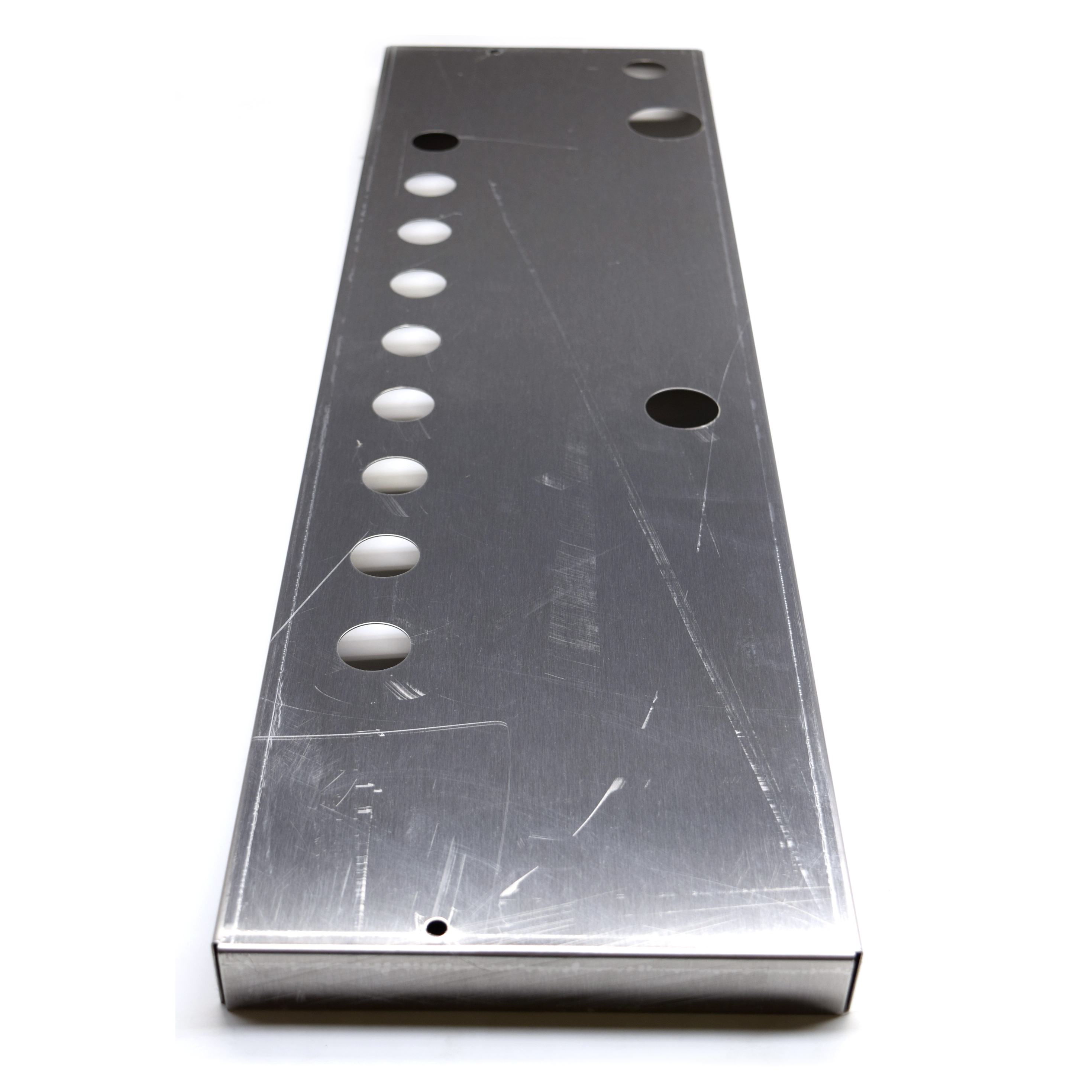

FR64 Baffle Plate, F Series Oven 27

21023 Ceramic, PO19 - 20.197" X 19.125" X .75" - Pizza Stone

21024 Ceramic, PO26 - 20.197" X 25.625" X .75" - Pizza Stone

21025 Ceramic, PO31 - 20.197" X 31.125" X .75" - Pizza Stone

21005 Rack, Oven Side 8

21021 Rack, F330 Oven Wire - Locking

21022 Rack, F318 Oven Wire - Locking

21020 Rack, F3226 Oven Wire - Locking

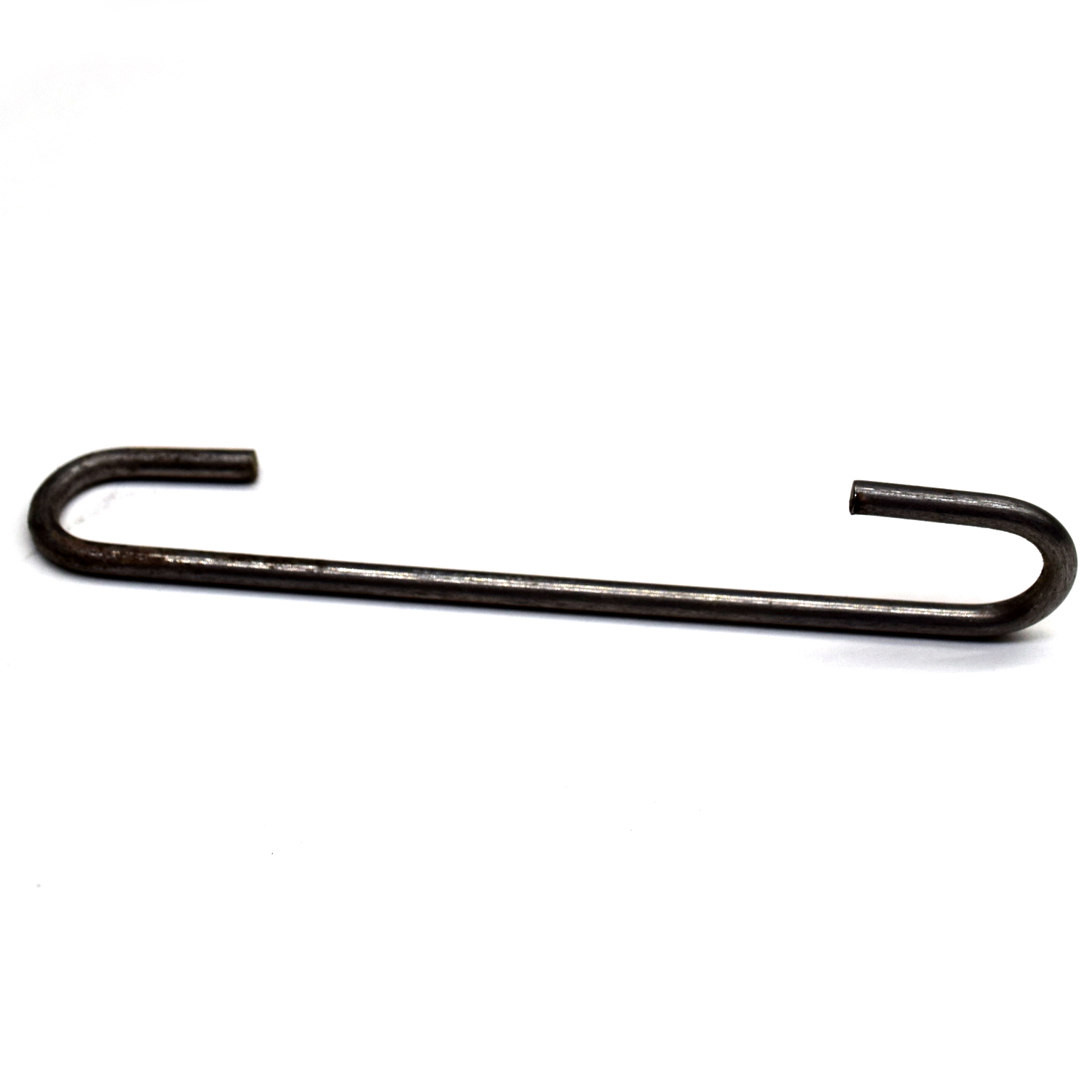

FR30H F Series "S" Door Hook 25

FR32P Hinge Pin 28

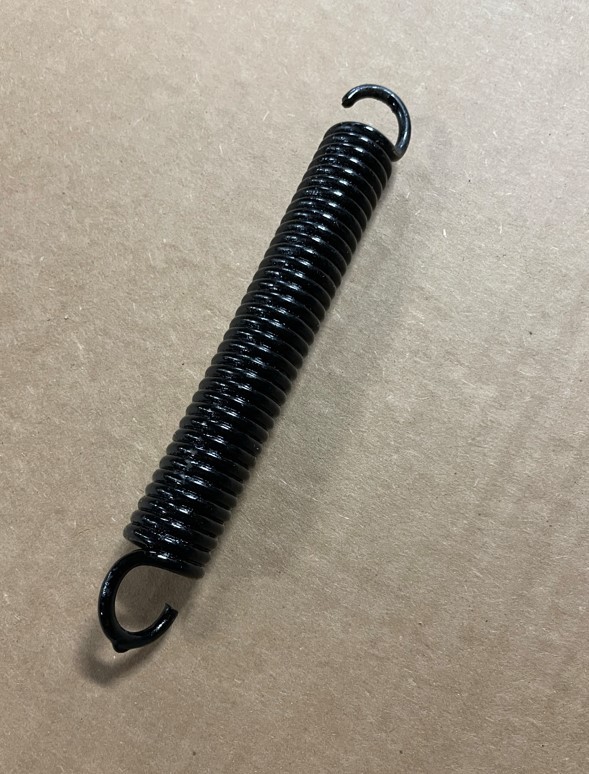

23008 Spring, Door (Oven) 30

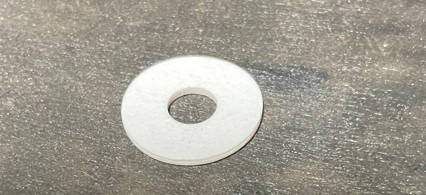

13030 Washer, F Series 1/4" Fiber 29
