Range Parts



NOT SURE WHICH PART YOU NEED? Click on the parts diagram below if you are not sure of the part number. You will see a pdf version of the parts drawing. The number next to the part is the Item#. Find the corresponding Item# in the parts listed below.

SKU Details



Sku Images Part# Description Diagram Part # ADDTOCARTDETAILSANDPRICE
16022 BURNER, SHORT STAR 13

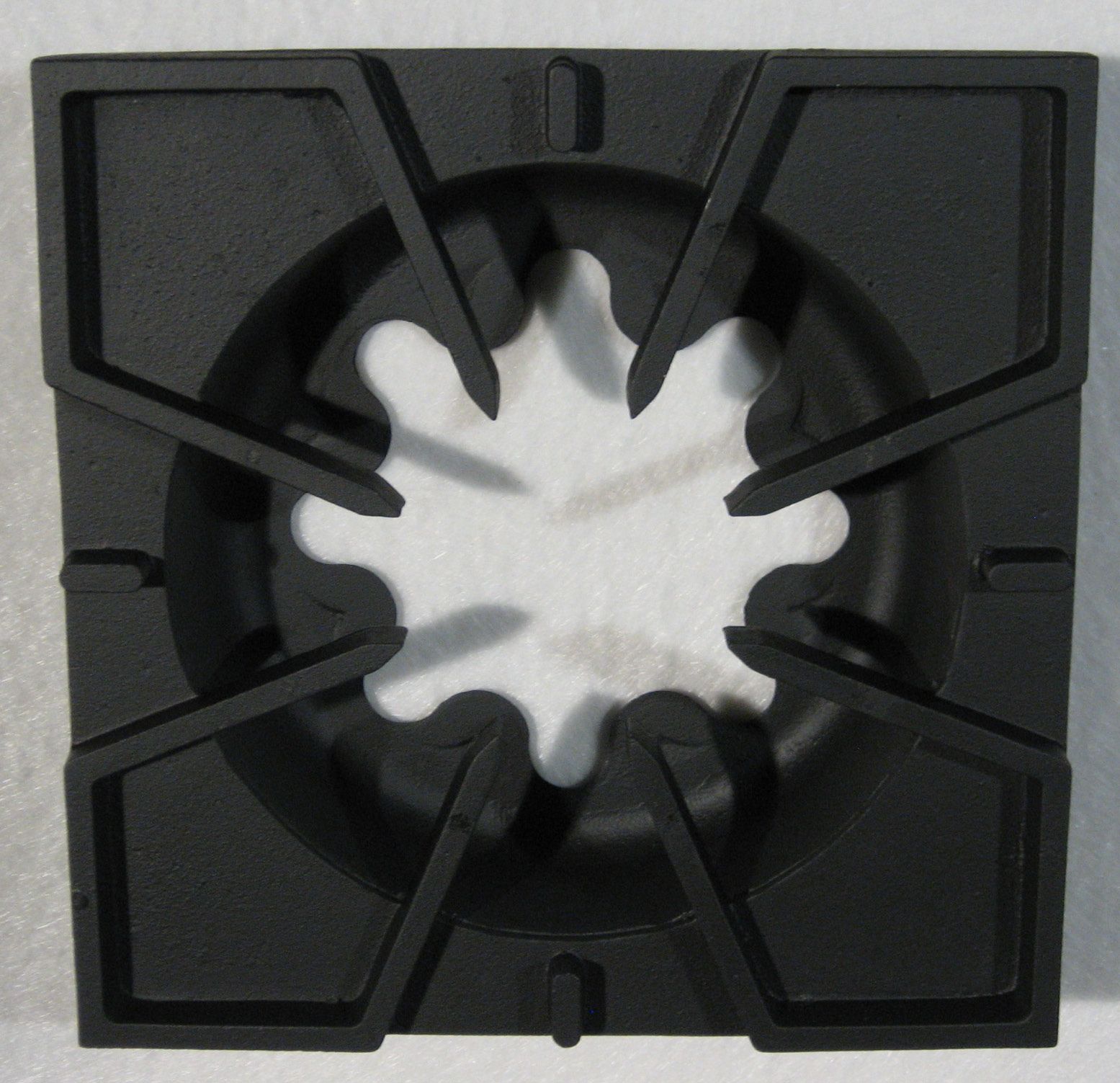

16040 Grate, F Series Painted Cast Iron Range Top 6

16013 Burner, Cast Iron "H" - Large - W/Air Mixer 12

25015 Valve, 3/16" Single Adjustable Pilot 14

25050-15 China Hat Assembly w/15" Tubing 15

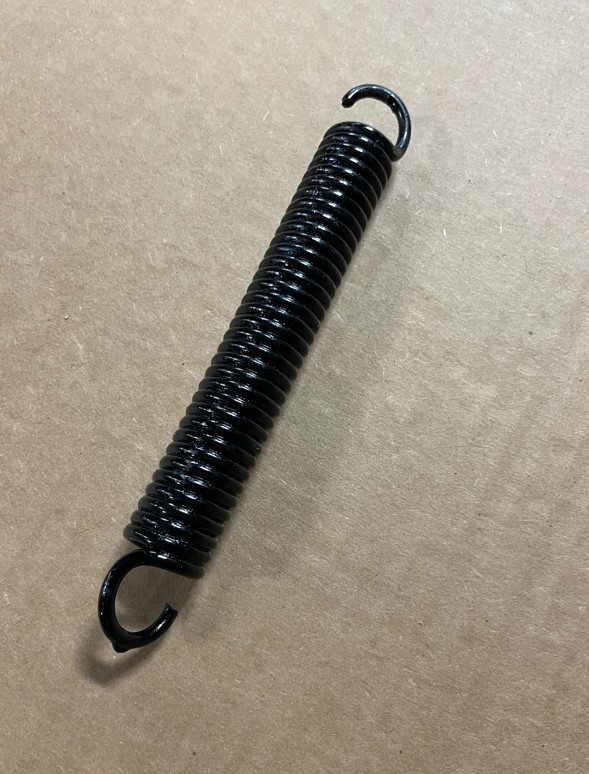

23008 Spring, Door (Oven) 29

26149 Tubing, 7/16" X 73-1/2", Alum 32

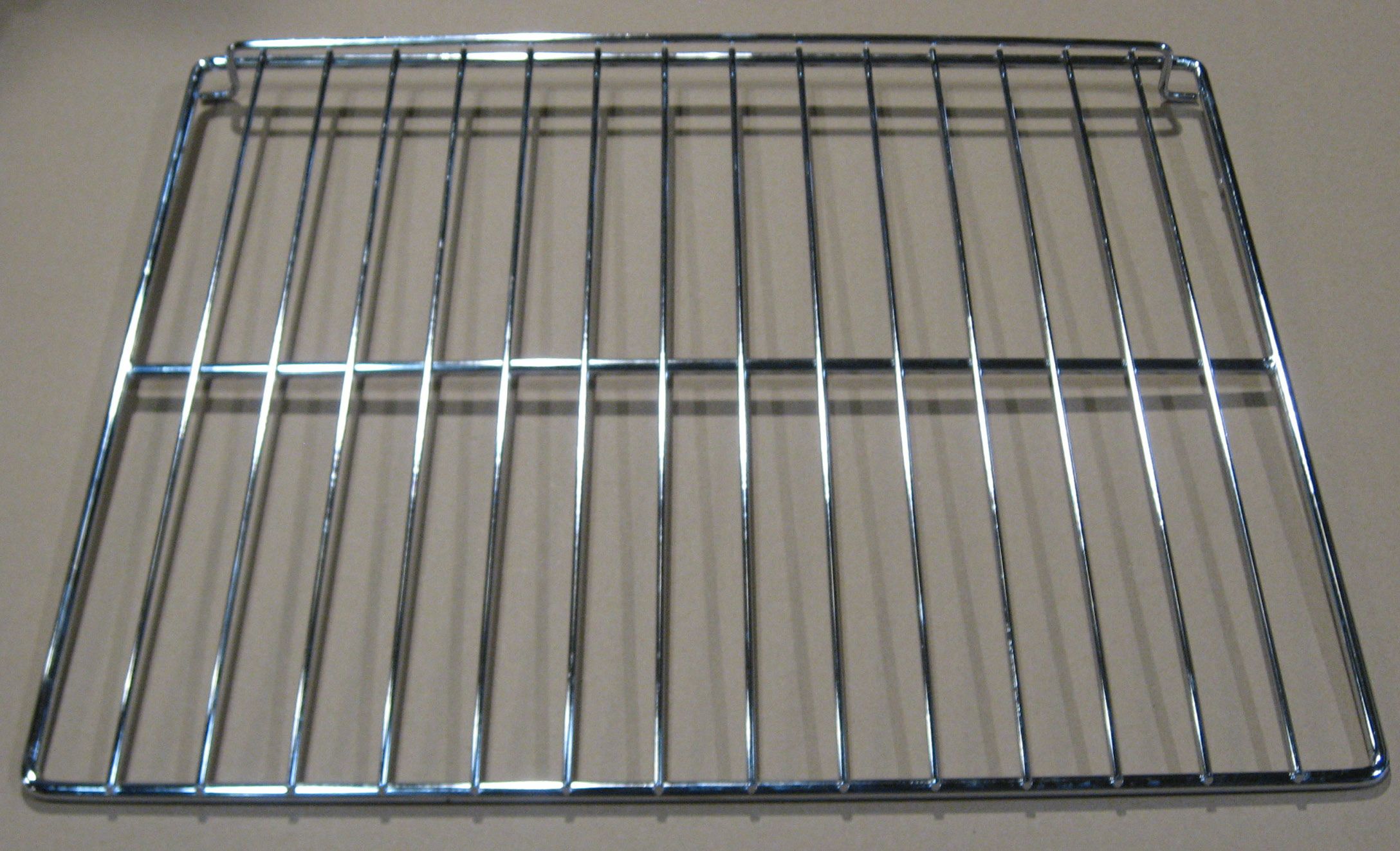

21020 Rack, F3226 Oven Wire - Locking 45

FR30H F Series "S" Door Hook 53

23017 HANDLE, F3226 OVEN DOOR 54

18013 BEZEL; BJWA Thermostat, Long - Oven 60

18012 Knob; BJWA Thermostat, 250-500, Black - Oven 61

17006N Control, Convertible Regulator - Natural 63a

17006L Convertible Pressure Regulator - LP 63b

25220 Elbow, 3/8" NPT x 3/8" CC, Brass, 90 Deg, Male 66

20110 ELBOW, OVEN BURNER MIXER 68

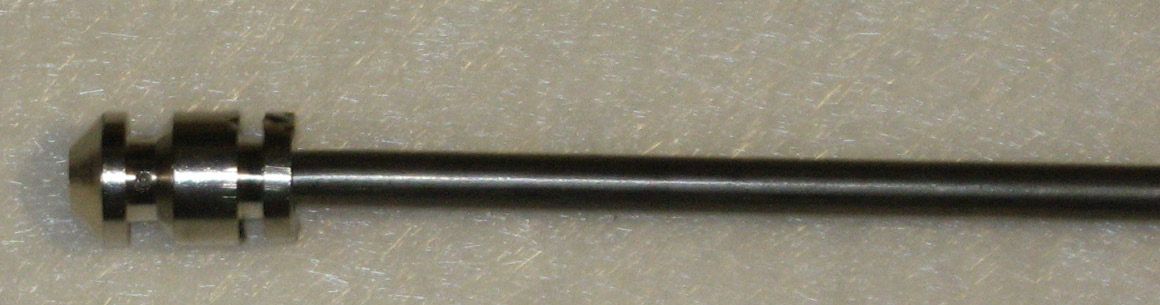

17005 Control, Thermocouple (#T46) 69

17003-A ASSY; Pilot Head Control - LP 71b

14041 Foot. Drive-In - 1-1/2" , ADJ Foot 73

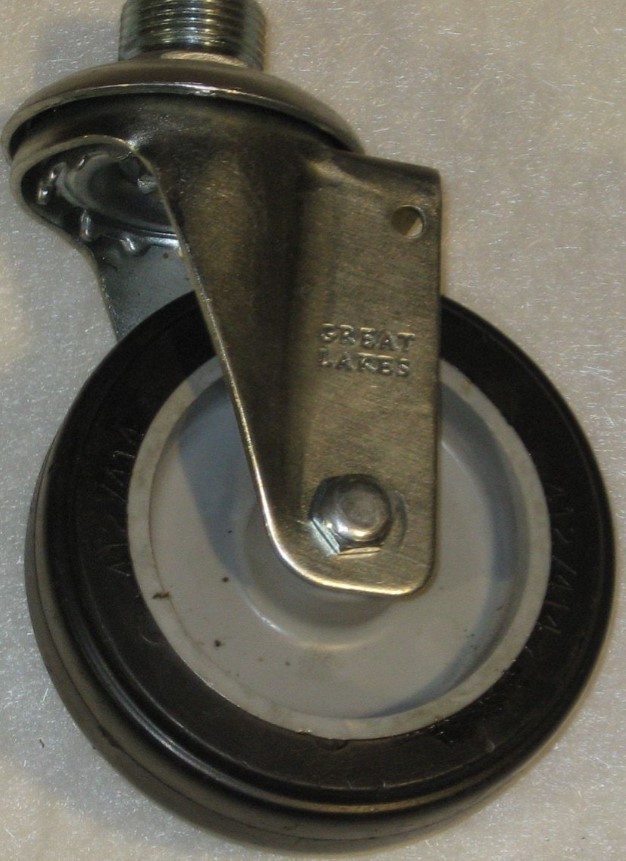

14051 Caster, Non-Locking (#NLLC6) 74

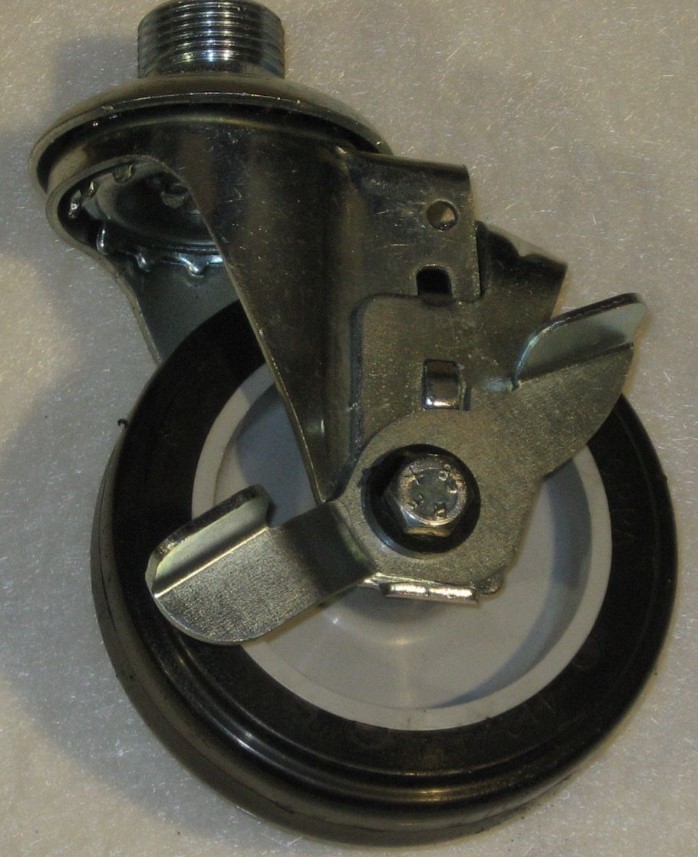

14050 Caster, Locking (#LC6) 75

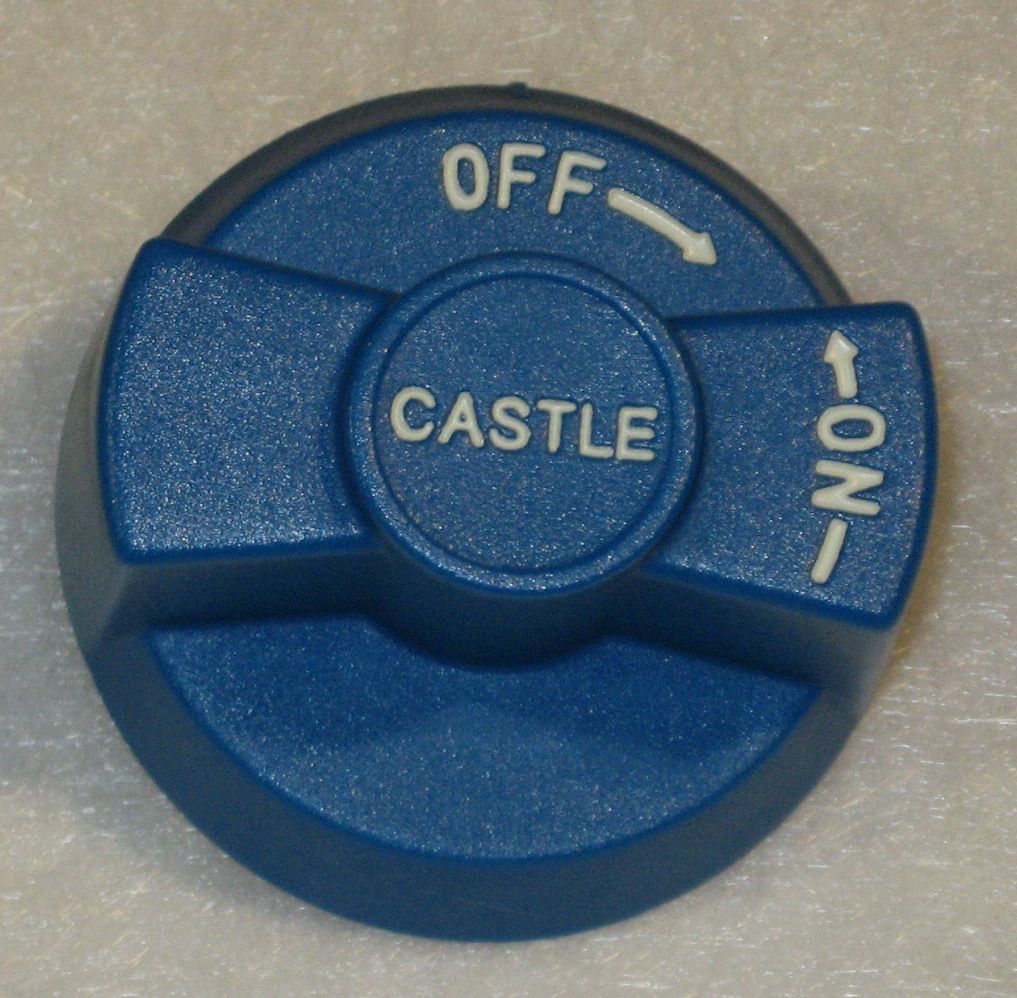

18005/18030 Knob, Big, On-Off, Manual - F Series - Blue 77

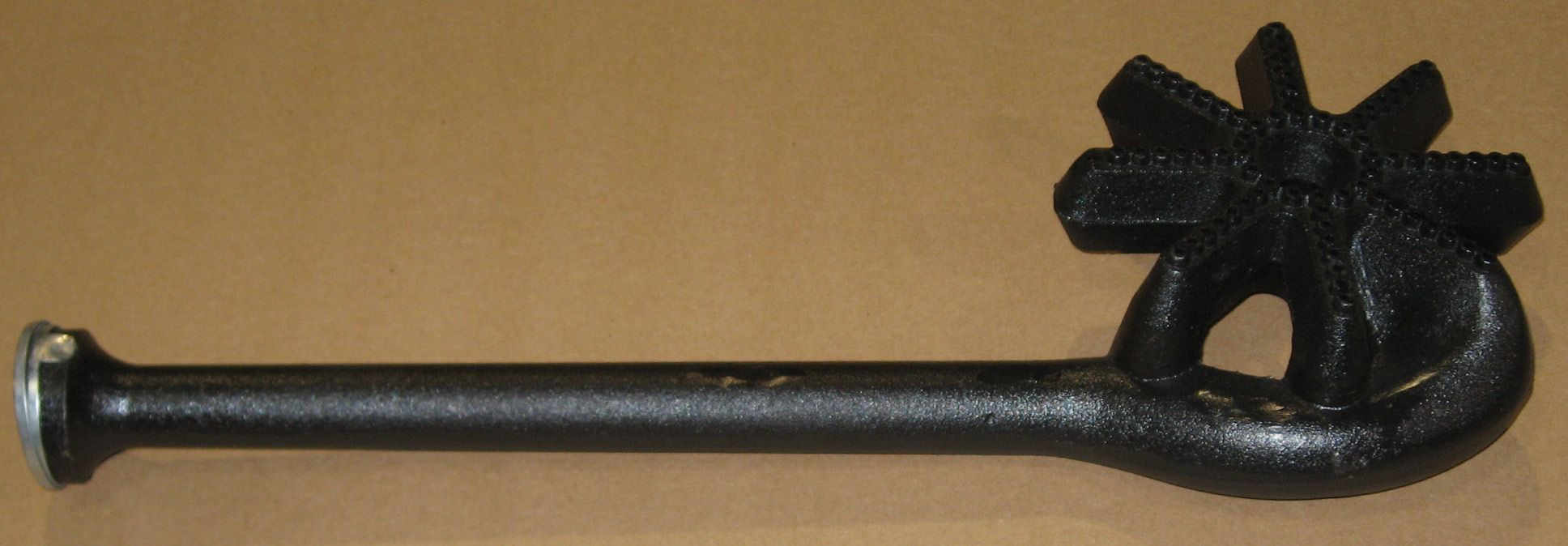

16021 Burner, Star-Long 1 1/4" 78

25001-F42 ASSY; F Series Open Top Gas Valve - NG

25001-F54 ASSY; F Series Open Top Gas Valve - LP

17018 BASO Safety Valve 64

17034 BJWA Oven Control Thermostat; 250 - 500 Degrees

25050-9 ASSY; 9" China Hat Pilot (Griddle/Broiler) 15

25001 Valve, Manual Gas (#18) Flat Up

21022 Rack, F318 Oven Wire - Locking 45

21021 Rack, F330 Oven Wire - Locking 45

17002-A ASSY; Pilot Head Control - NG

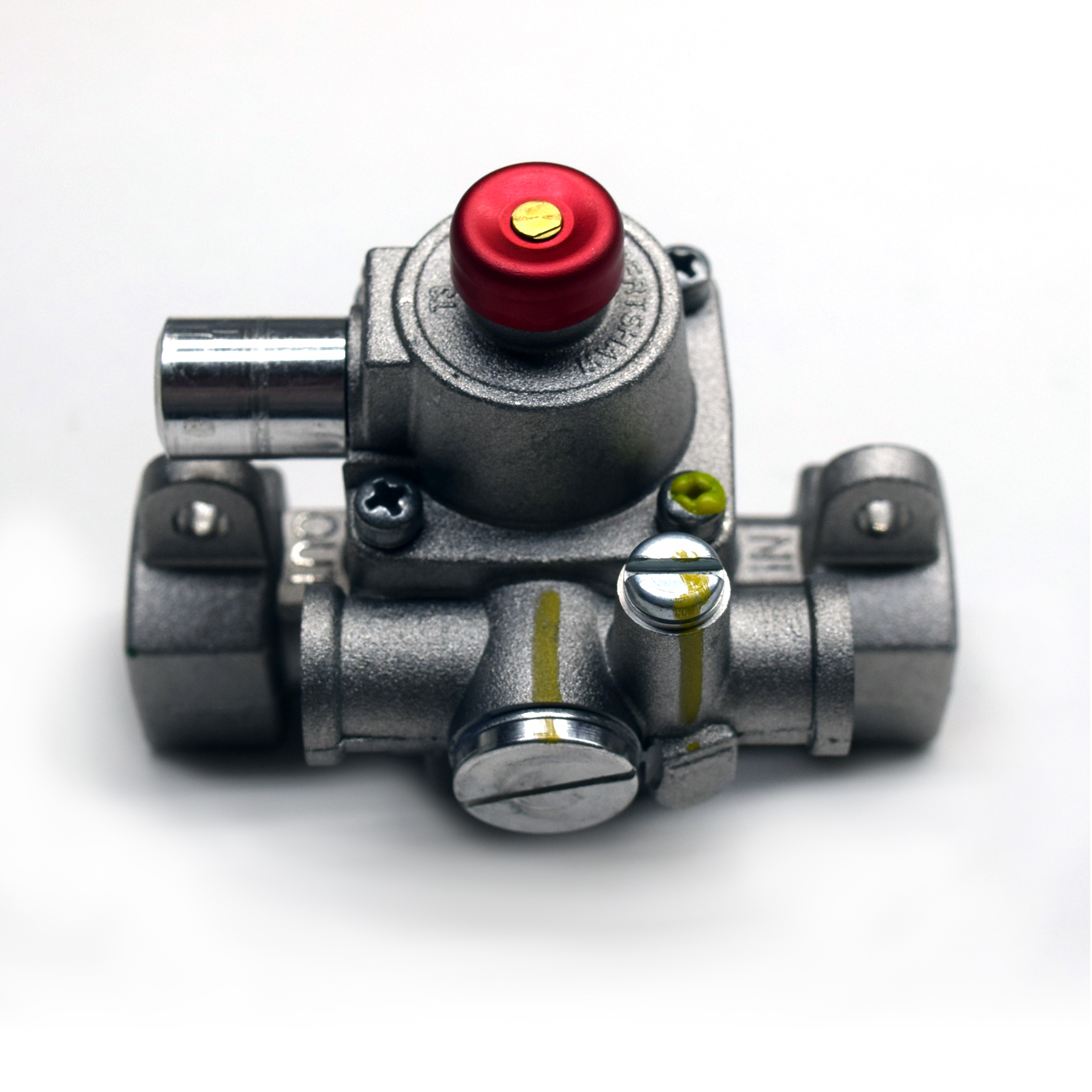

17017 Control, TS11 Oven Safety Valve

25050-9 ASSY; 9" China Hat Pilot (Griddle/Broiler)

17006N Convertible Pressure Regulator - Natural

17006L Control, Convertible Regulator - LP

18030 Knob, Big, On-Off, Manual - F Series - Blue

18014 Knob, ABJ Oven Thermostat

25001-F54 ASSY; F Series Open Top Gas Valve - LP 3

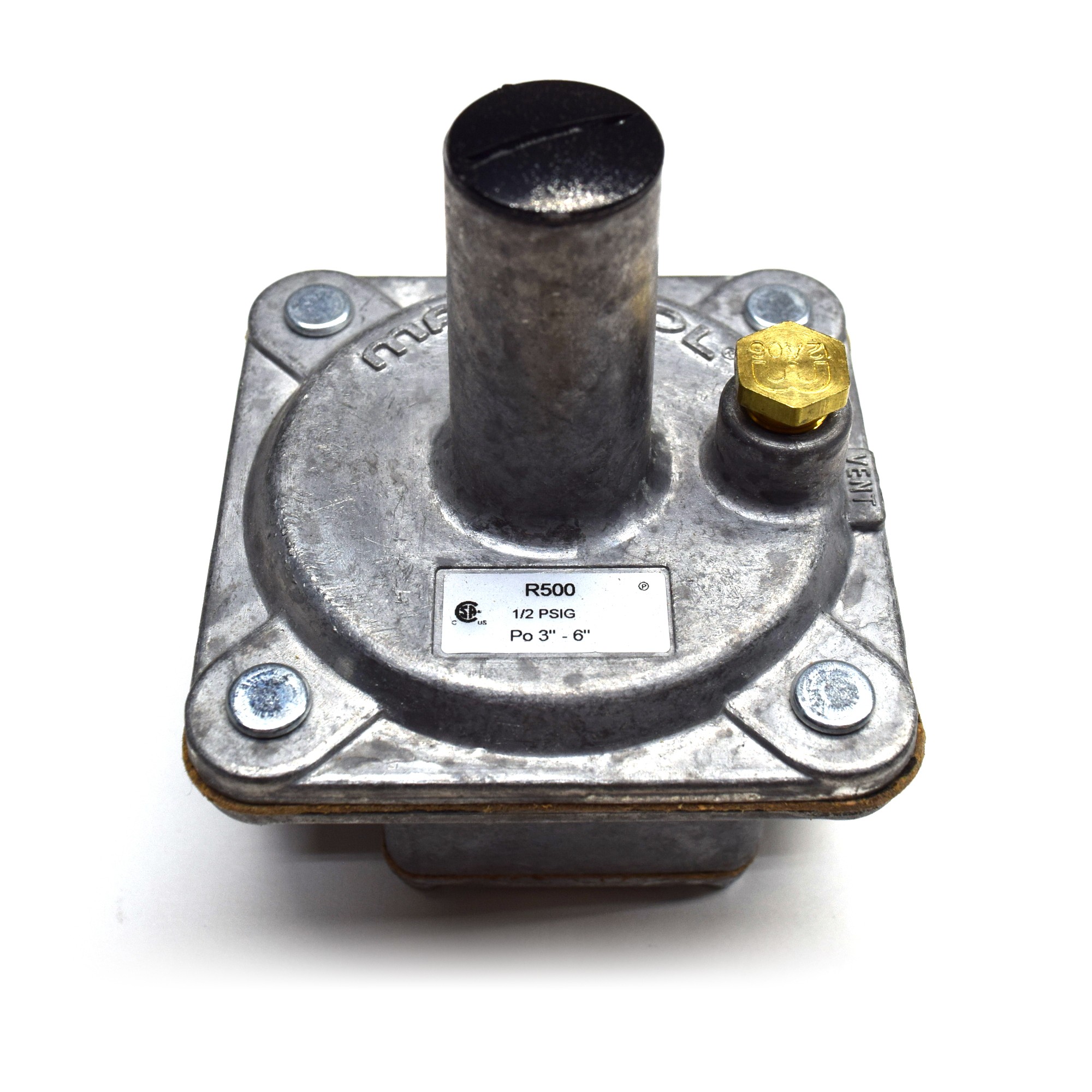

17010-A ASSY, F3226 Regulator W/5" Nipple - NP

17011-A ASSY, F3226 Regulator W/5" Nipple - NP

20505-FA 150
